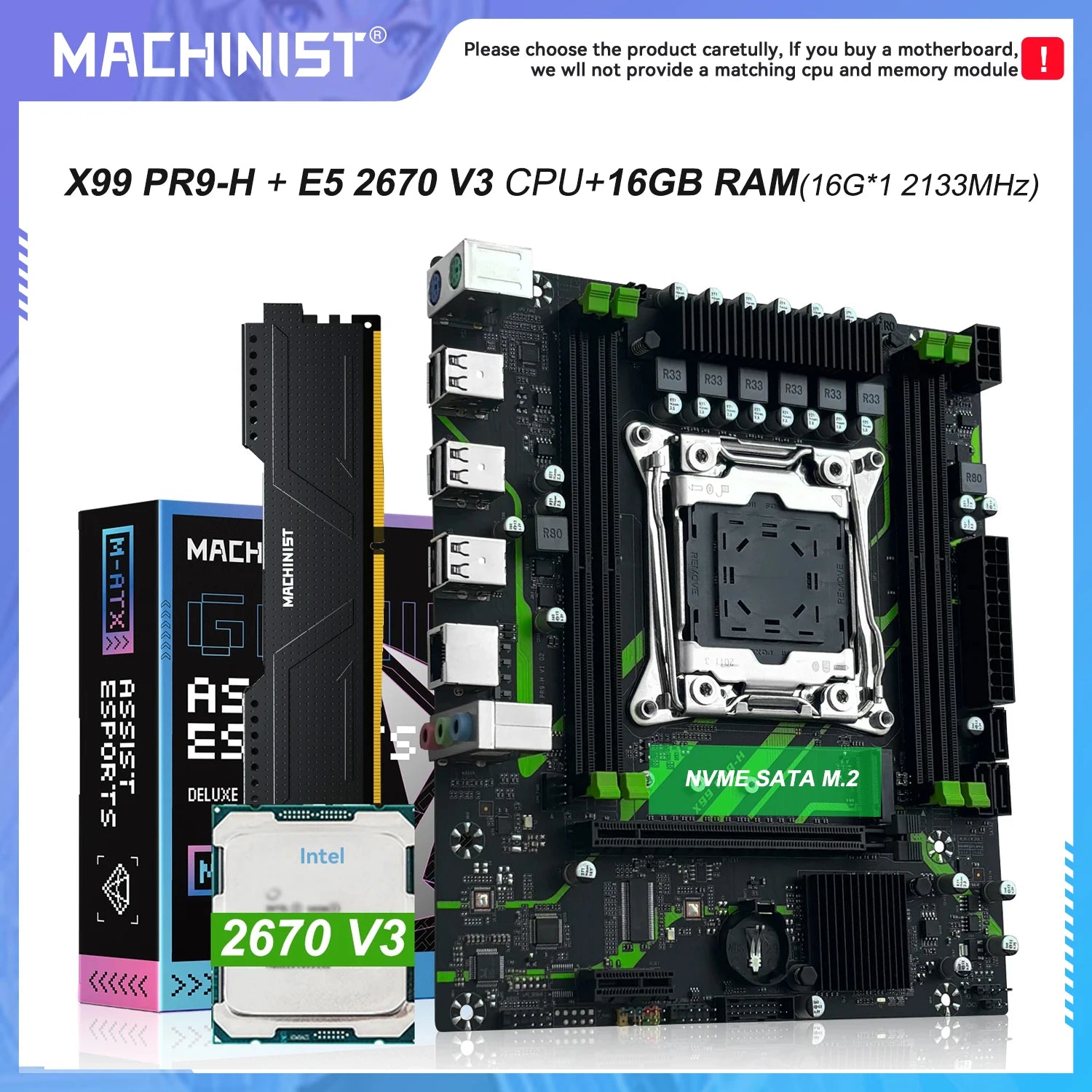

PR9-H MACHINIST X99 motherboard LGA 2011-3 Set combo optional Xeon E5 2670 V3 CPU Processor 16G DDR4 ECC RAM Memory NAME M.2
SPECIFICATIONS
Application: Desktop

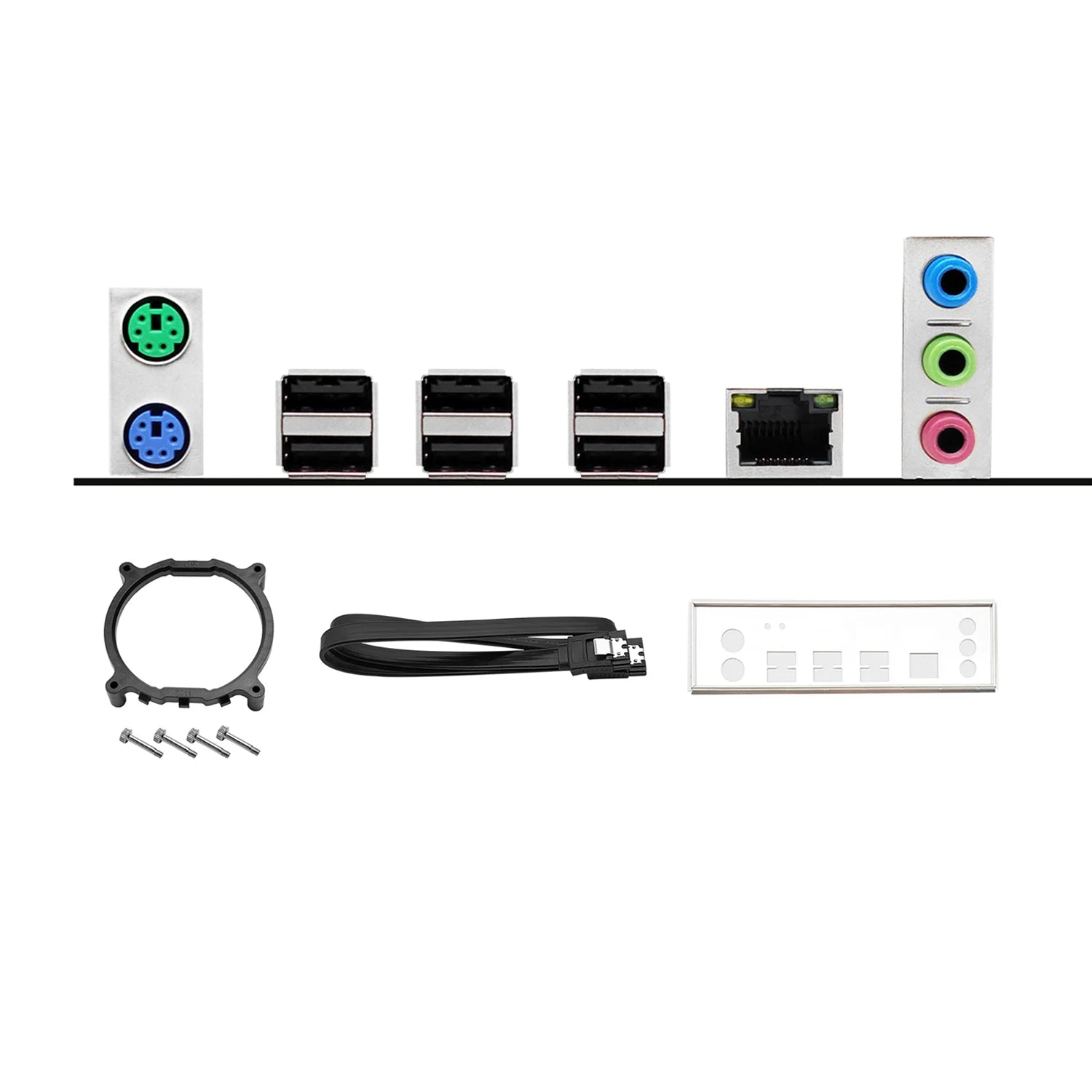

Back I/O Ports: 1x RJ45,6 x USB 2.0,PS/2
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: Intel H55
Chipset Manufacturer: Intel
Choice: yes
Form Factor: CeB,Micro-ATX
High-concerned chemical: None
MACHINIST Model: X99-PR9
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,USB 2.0 Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: USB 2.0
Processor compatibility: 6th Intel Core i5,Intel Others
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: M.2 (NVMe),M.2 (SATA)
Support Memory Type: DDR4
Support USB Type: USB 2.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
With CPU: Yes
>>Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check carefully.
CPU:
Processor series: Xeon E5 2670 V3 (12 cores/24 threads)
Main frequency: 2.3GHz
Socket type: LGA 2011-3
Level 3 cache: 30MB
Process: 22nm
Type: REGECC
Frequency: DDR4
Capacity: 16GB (1PCS*16GB)
TDP:120W
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping
Memory:
Type: ECC REG (server memory)
Frequency: DDR4 2133MHZ
Capacity:16G (1*16G)
For installing memory, if you install a single or dual memory stick, you need to install it in slot 1 and slot 4 (the outermost slot) first. The internal memory slots (2/3) on the motherboard cannot be used alone. The details page picture has an introduction.

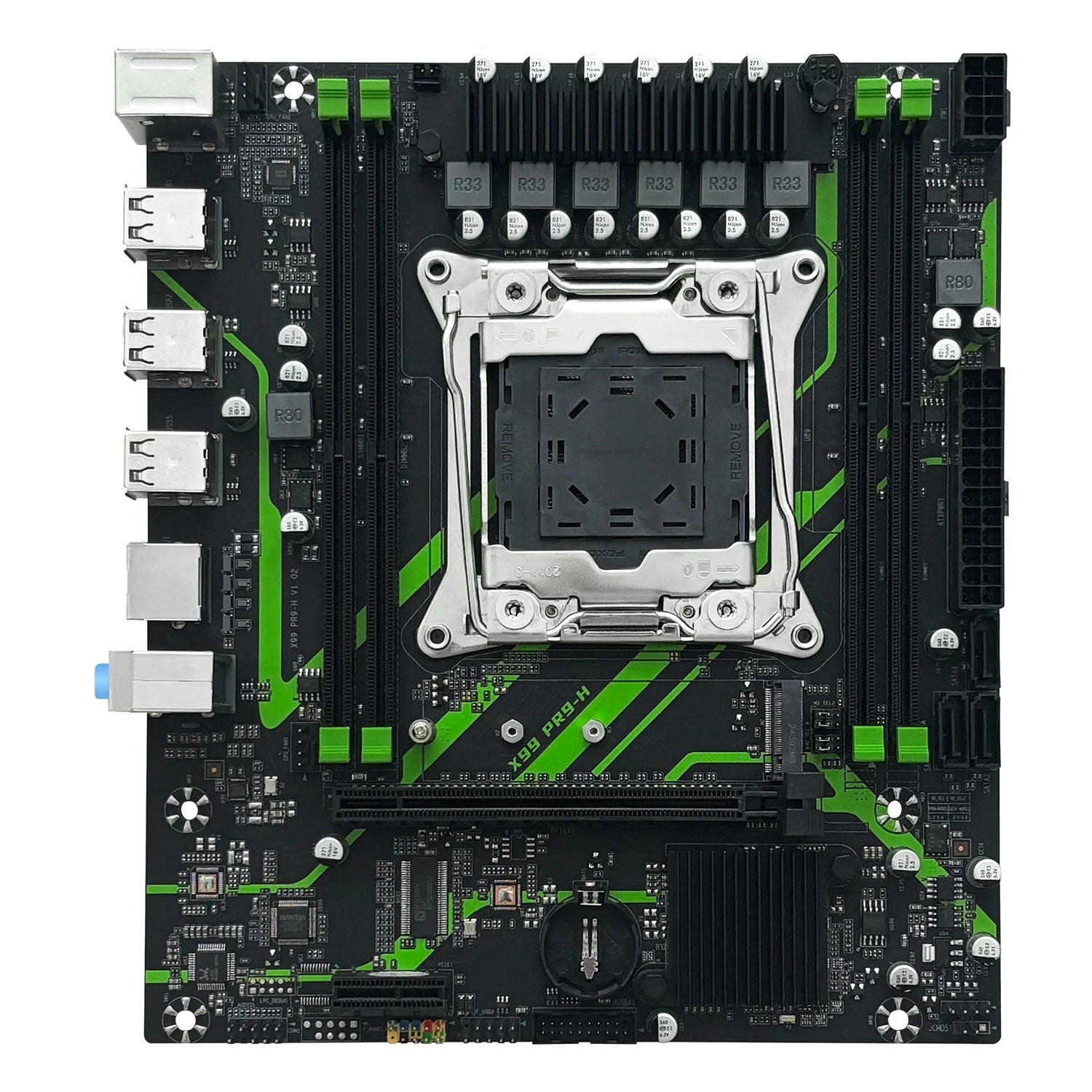

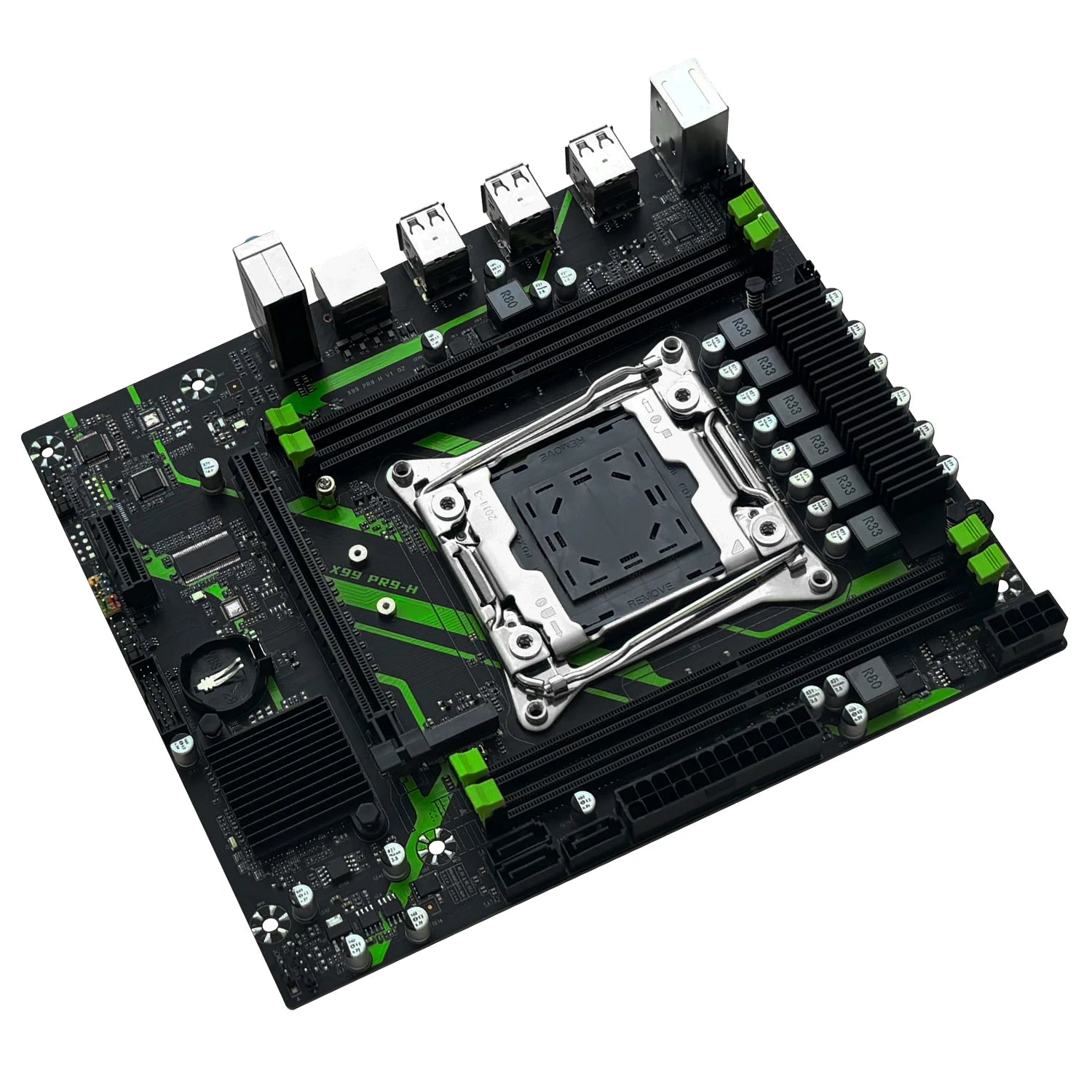

Model: X99-PR9-H motherboard (MACNIHIST)
CPU slot: Intel LAG2011-3 E5 V3/V4 series processor.
Chip: HM55 chipset
Memory slot: dual channel, 4*32GB DDR4 2400MHz, maximum capacity 128GB.
Support DDR4 ECC and desktop memory. Frequency supports 2133/2400/3200MHz.

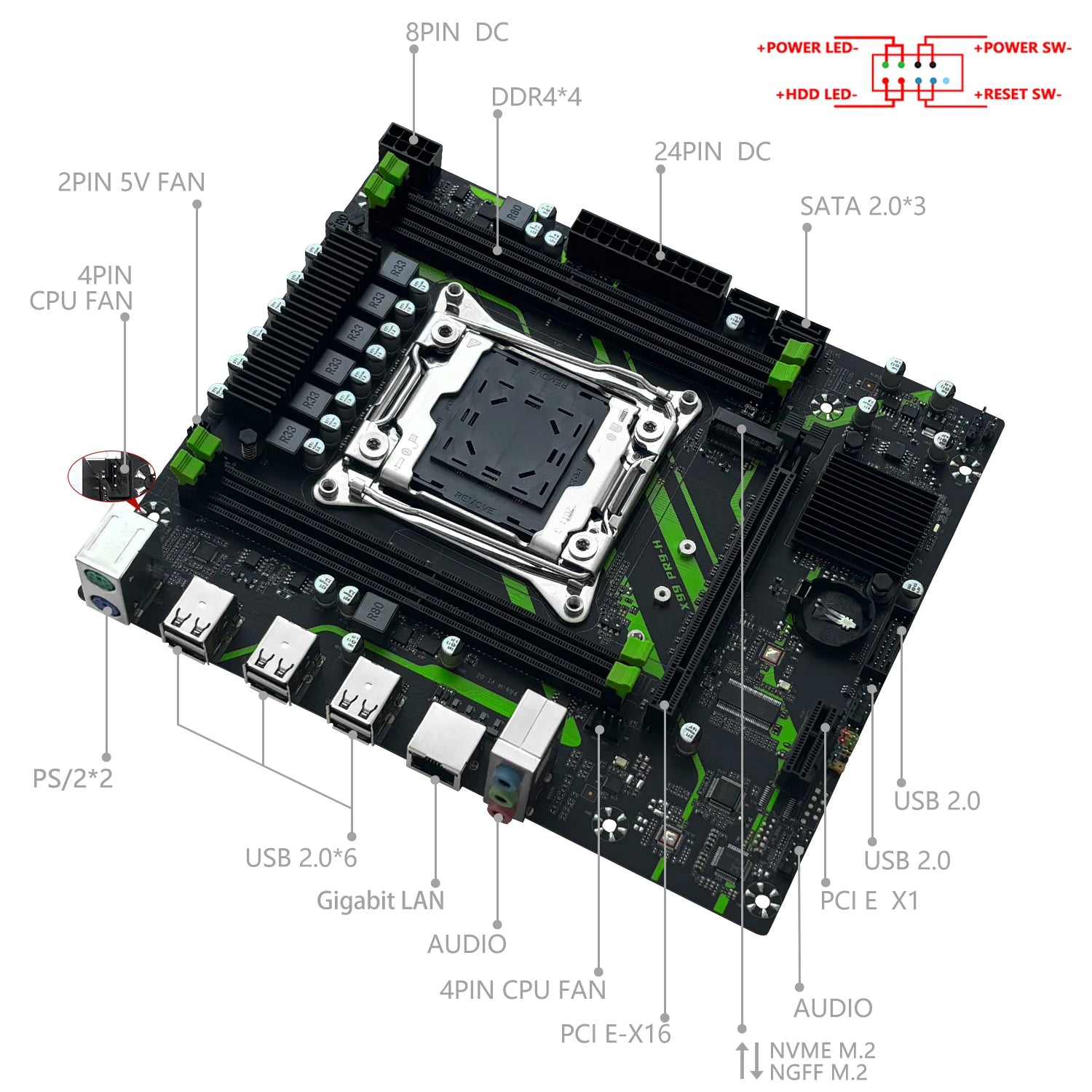

Interface parameters:
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN).
Ethernet: a Realtek Gigabit Ethernet card.
USB interface: 6 USB2.0 interfaces
PCIe: 1 PCIe x16, 1 PCIe x1.
SATA interface: 3 SATA interfaces (3 SATA2.0).
ATXPWR interface: 1 standard 1X8PIN power socket; 1 standard 1X24PIN power socket.
M.2 interface: 1 M.2 interface (supports NVME M.2 or SATA M.2)

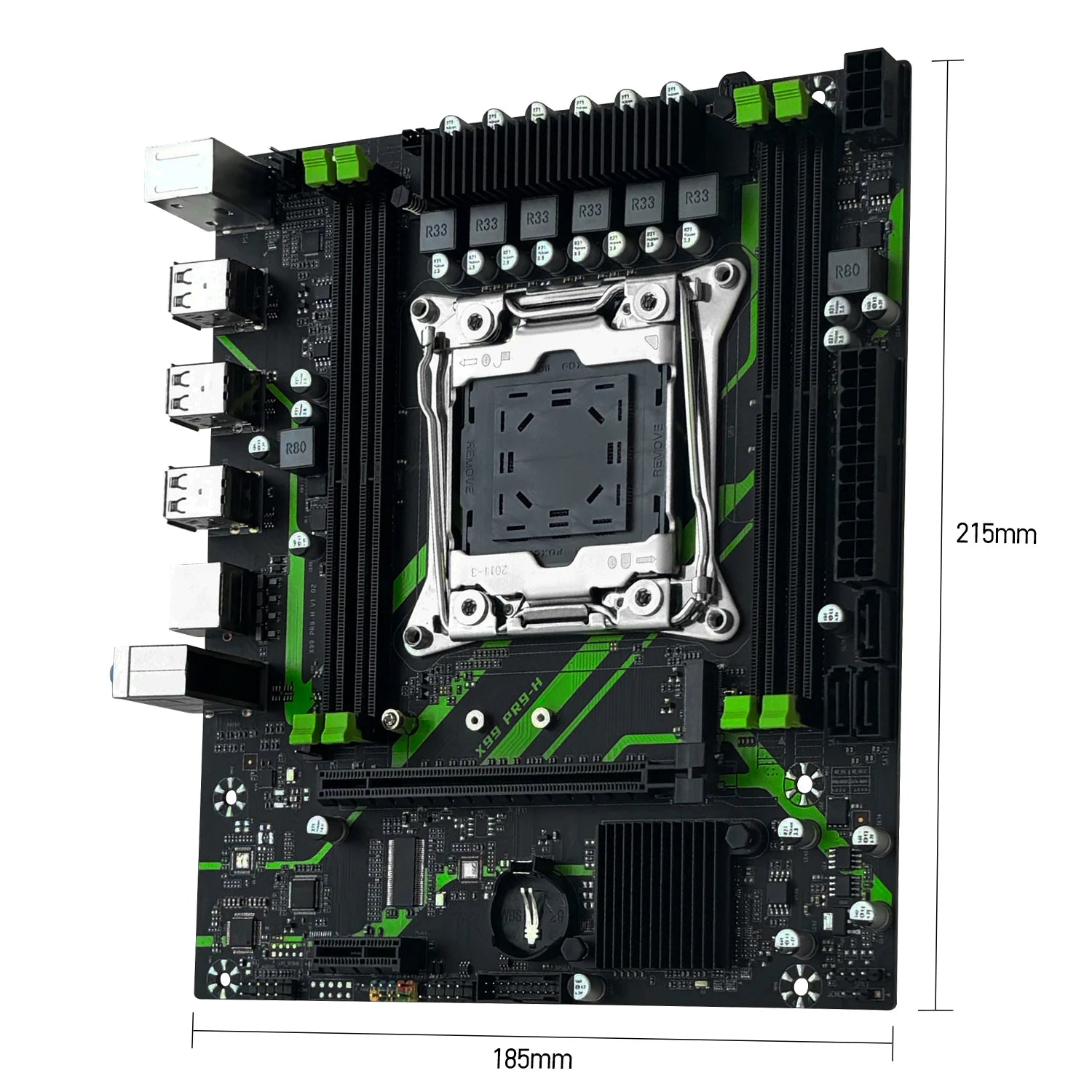

Size: 215mm x 185mm
Applicable hard disk: SATA 2.5 solid-state drive, SATA 3.5 mechanical hard disk, NVME M.2, SATA M.2 [Support M.2 mode switching, factory default is NVME (PCIE), can be switched to NGFF (SATA)]
Startup item shortcut key: f11
You can boot without a graphics card, but you can't enter the system.
Sound card model: Realtek ALC 897 2.1 channel
Network card: Realtek 8111H (Gigabit)
Notes:
1. All motherboard memory processors are strictly tested before shipment.
2. Since China Post and Customs prohibit the use of batteries, the batteries in the motherboard pictures will be removed before shipment.
3. For tax issues, please make sure you can solve the customs clearance issues by yourself. If you can't solve it by yourself, we do not recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
